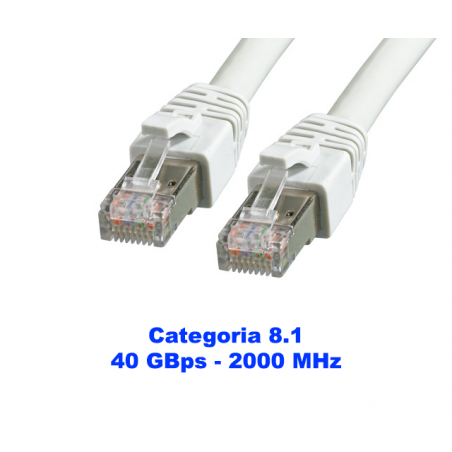

Patch cable Cat.8.1 S/FTP RJ45 40 Gb/s 2000 MHz LSZH grey
lei54.45
Tax included
Patch cable Cat.8.1 S/FTP RJ45 40 Gb/s 2000 MHz LSZH grey
Patch cable Cat.8.1 S/FTP RJ45 40 Gb/s 2000 MHz LSZH grey
The Cat.8.1 patch cable is suitable for 25GBASE-T and 40GBASE-T applications based on RJ45. The Cat.8.1 has a frequency range of up to 2000MHz (bandwidth) and a maximum transmission distance of currently 30m.
Category 8.1, cable type S/FTP 4x2xAWG24/7, jacket material: LSZH, outer diameter: 8mm.
PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt.
Transmission standards: 25Gbit, 40Gbit, Bandwidth 2000 Mhz.
RJ45 acc. TIA/EIA 568B, mating cycles >750, bending radius > 40mm.
Patch cable printing CAT8 S/FTP 4x2x24AWG/7 LSZH 2000MHz ISO11801.
Impedance 100 ±15 Ω, Insulation resistance 10 MΩ, Contact resistance 5 mΩ.
K5528GR.0,5
10 Items
Data sheet
- Categorie
- 8.2
- Screen
- SFTP
- Exterior Diameter
- 8 mm
- Frequency
- 2000 MHz
- Compositions
- LSZH
- Producator
- EFB ELEKTRONIK
