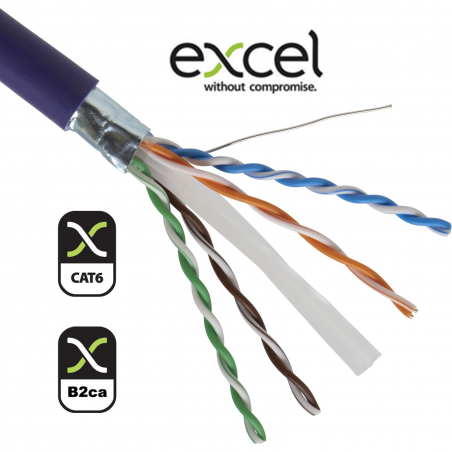

Cable Category 6 F/UTP AWG 23 (0,573 mm) LS0H Euroclass B2ca-s1a-d1-a1 Violet

Cable Category 6 F/UTP AWG 23(0,573 mm) LS0H Euroclass B2ca-s1a-d1-a1 Violet

Excel Networking Category 6 Screened cables are manufactured and tested to the TIA/EIA 568‐B.2‐1, EN50173‐1 and ISO/ IEC 11801 Category 6 specifications. Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are then formed around a central ‘X’ shaped polyethylene filler, which assists in maintaining and enhancing the cable performance.

Euroclass B2ca-s1a-d1-a1, Category 6, Overall screening Foil - F/UTP, Awg-size 23 (0,573 mm), Conductor category: Class 1 = solid copper 100%, Colour Violet.

Reaction-to-fire class according to en 13501-6: B2ca.

Smoke development class according to en 13501-6: s1a.

Euro class flaming droplets/particles according to en 13501-6: d1.

Euro class acidity according to en 13501-6: a1.

Specification core insulation: PE

Outer sheath material: Copolymer, thermoplastic (LS0H).

Low smoke (acc. bs en 61034-2), Halogen free (acc. en 60754-1/2).

Flame retardant: In accordance with EN 60332-1-2 and EN 50399

Outer diameter approx: 7.6 mm.

Installation temperature range: 0...50 °C.

Operating temperature range: -10...60 °C.

Nvp value: 70 %.
