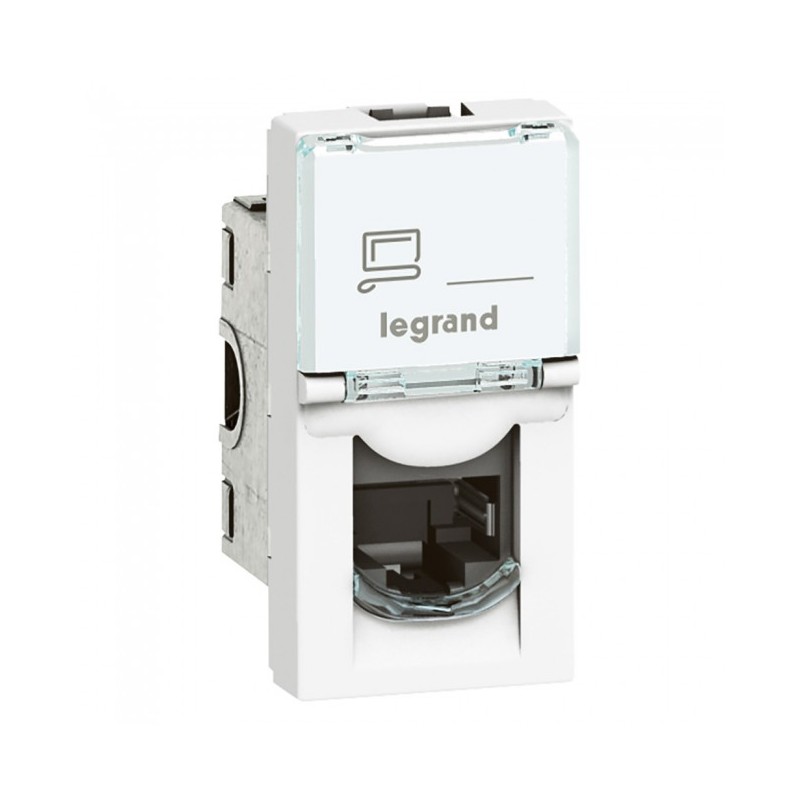

Category 6 UTP RJ45 socket Mosaic 22,5x45mm white Legrand 076561

Category 6 UTP RJ45 socket Mosaic 22,5x45mm white Legrand 076561.

Contacts marked with dual colour code and wiring schemes T568A and T568B.

Conform to standards ISO/IEC 11801 Ed. 3.0, amendment 2, EN 50173-1 and TIA/EIA C, Category 6 RJ 45 socket for high speed transmission (Gigabit Ethernet).

Conductors supported:  Solid/stranded: 0.4 to 0.65 mm, AWG 26 to 22.

Polyethylene conductor insulation: Ø 0.85 to 1.7 mm on insulation.

RJ45 connectors are equipped with a locking nut. They do not require a special tool and can be re-wired if a mistake is made.

Impact resistance: IK03, IK04 (1 module).

Penetration against solid bodies and liquids: IP20

Max. number of connections and disconnections: 5 without refreshing the wiring. Endurance: 2500 movements (plug insertion/withdrawal).

Material: Polycarbonate, Contacts: Gold/nickel.

Breakdown voltage ≥ 1000 V, Contact resistance ≤ 20 mΩ, Insulation resistance ≥ 500 mΩ at 100 Vdc.

Tested and independently certified to comply with IEC 60512-99-001 and IEC 60512-99-002 for PoE support up to 90 W (Type 4).

Storage temperature: - 10°C to + 70°C Operating temperature: - 10°C to + 60°C.

IEC 60603-7 series : International standard for connector specifications Connectors are compliant to requirements for the following remote powering applications IEEE 802.3af , IEEE 802.3at , IEEE 802.3bt : ‘‘Power over Ethernet”, Types 1 to 4, up to 90 W.
