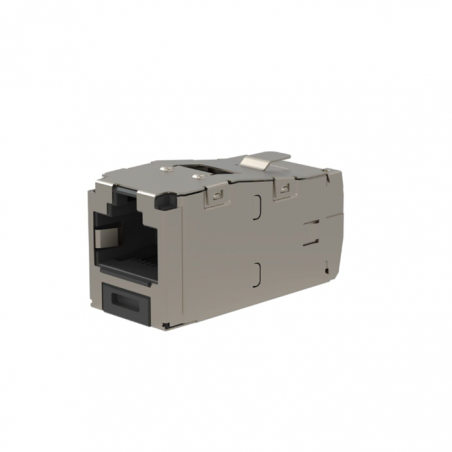

Shielded RJ45 Cat 6 STP TG Keystone Jack Module Black Panduit

Shielded RJ45 Cat 6 STP TG Keystone Jack Module Black Panduit.

The MINI-COM® Cat 6 Shielded RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with MINI-COM Shielded Modular Patch Panels and Faceplates. The jack module is black.

Dimmensions (WxHxL): 15.7x18.8x38.1mm.

Standards: Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz, Complies with ANSI/TIA-1096A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4 for up to 100W, UL 1863, UL 1863, UL 2043 and RoHS Compliant.
